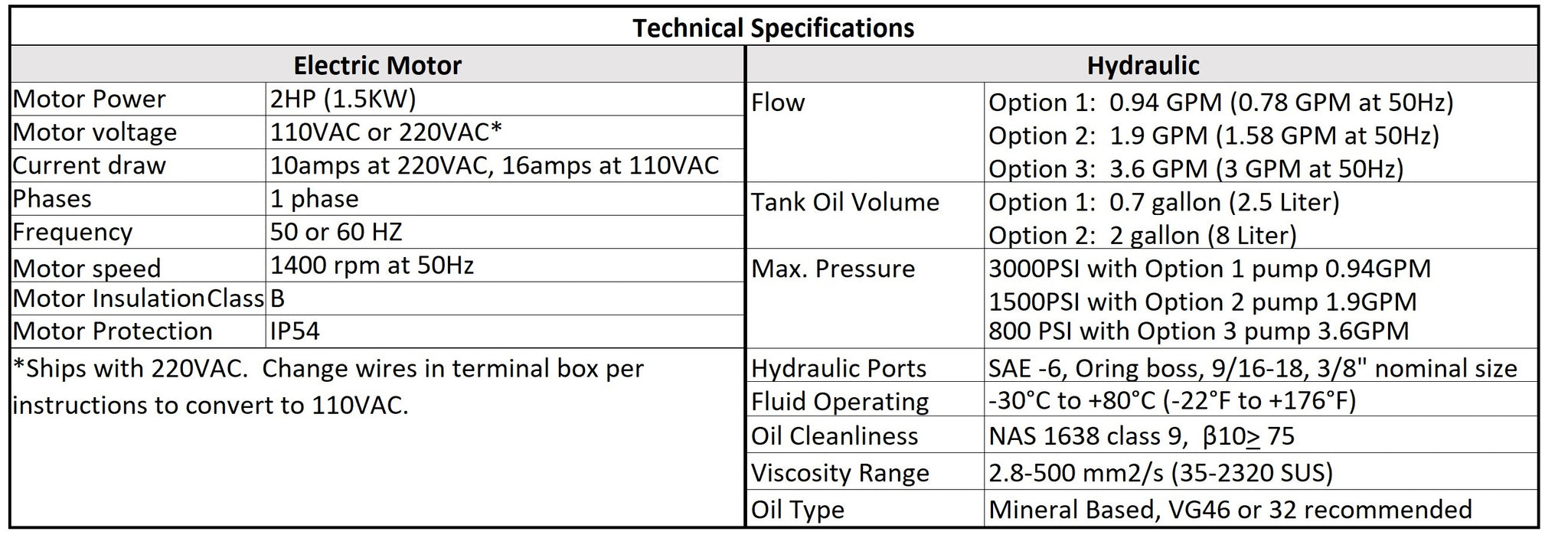

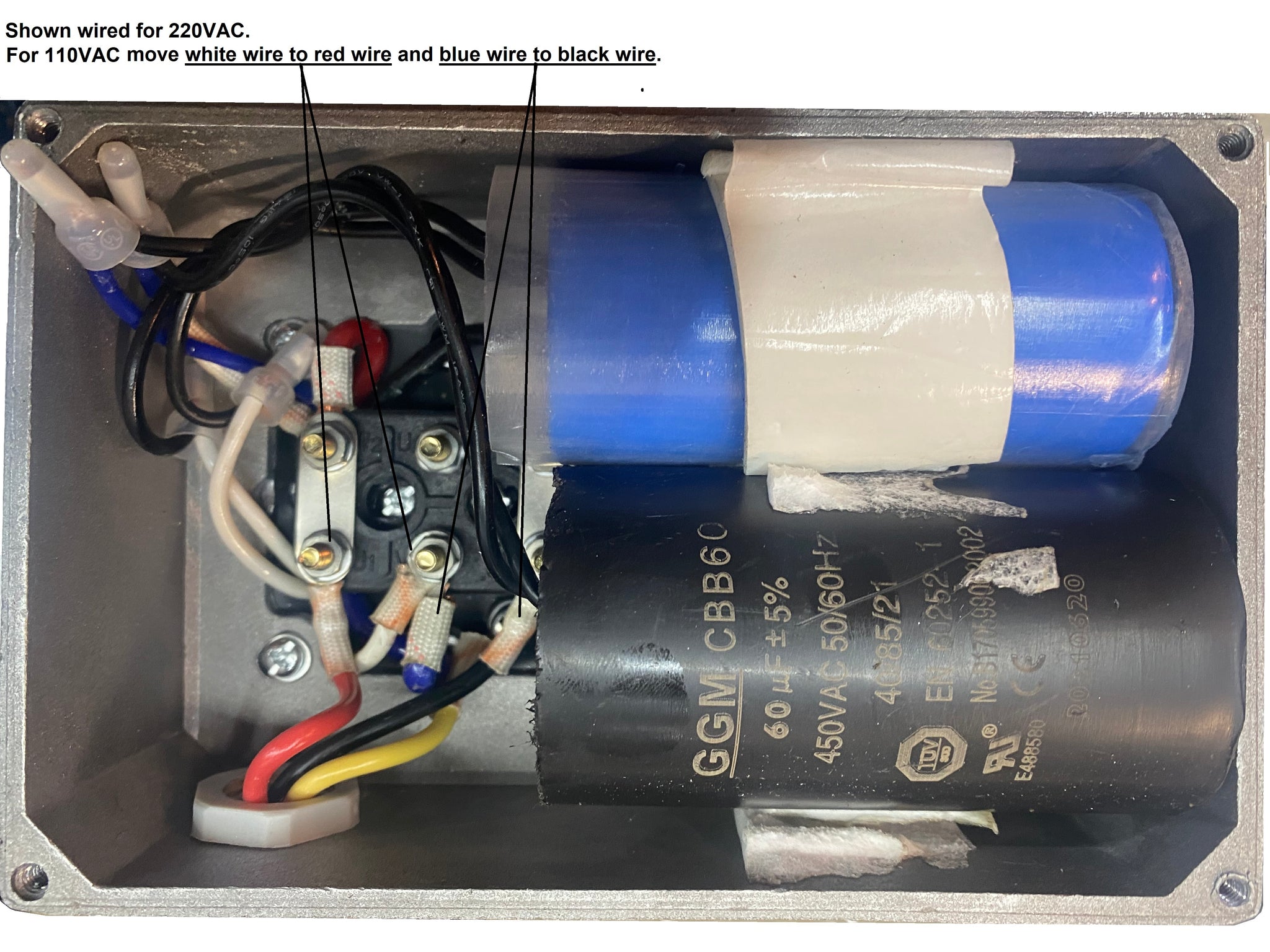

The hydraulic power unit provides hydraulic flow to cylinders, motors or other hydraulic actuators. The hydraulic power unit can be powered from household 110/220VAC 50/60hz single phase houshold power source. The base unit comes with 2hp (1.5KW) motor, relieve valve and threaded pressure and tank ports. There are 3 pump options that limit the maximum pressure due to the horsepower available:
- 0.94 gpm pump = 3000psi max. achievable pressure
- 1.9 gpm pump = 1500psi max. achievable pressure
- 3.66 gpm pump = 800psi max. achievable pressure

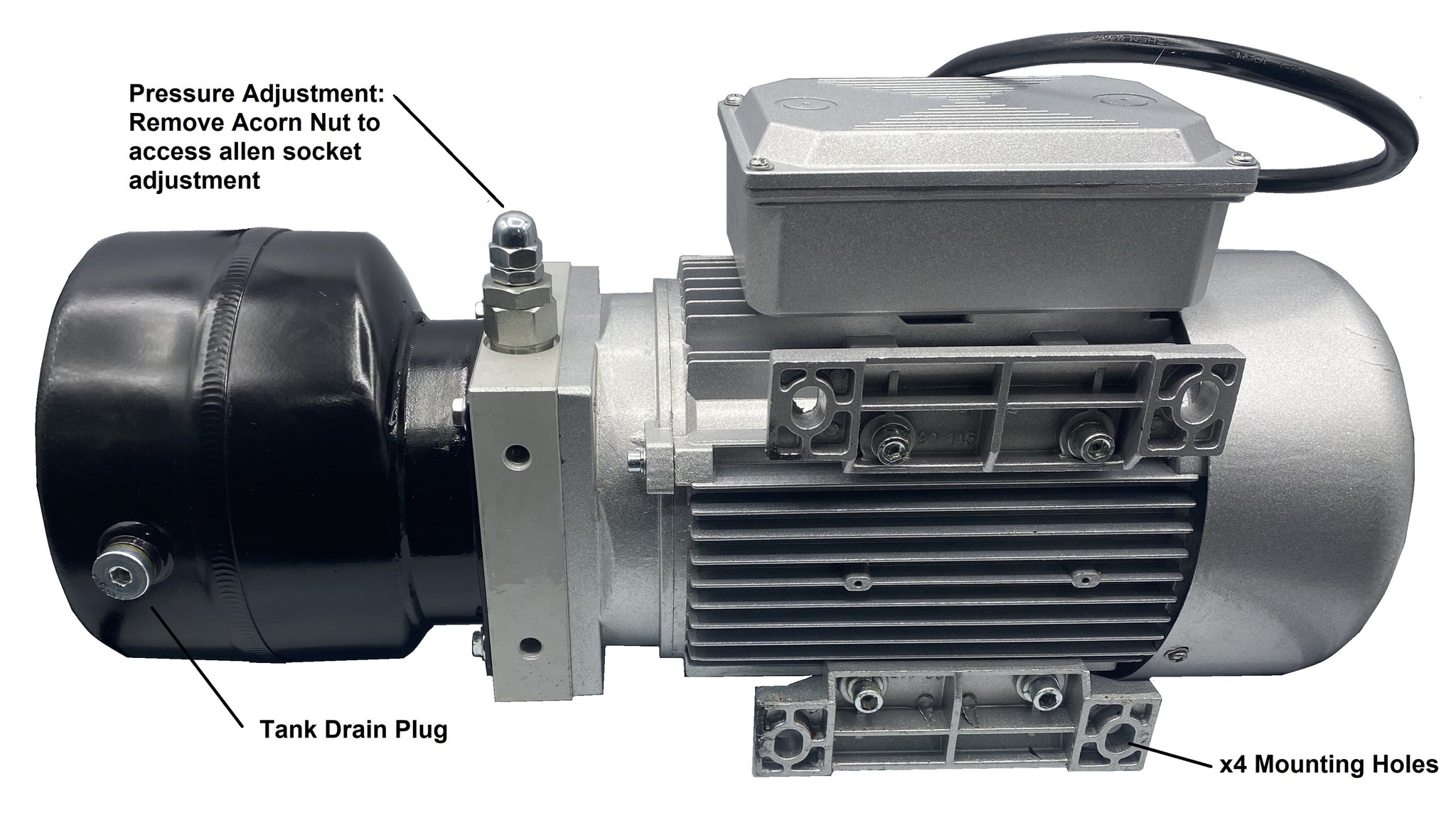

The flow rate is fixed but the pressure can be adjusted lower than the maximum recommendation

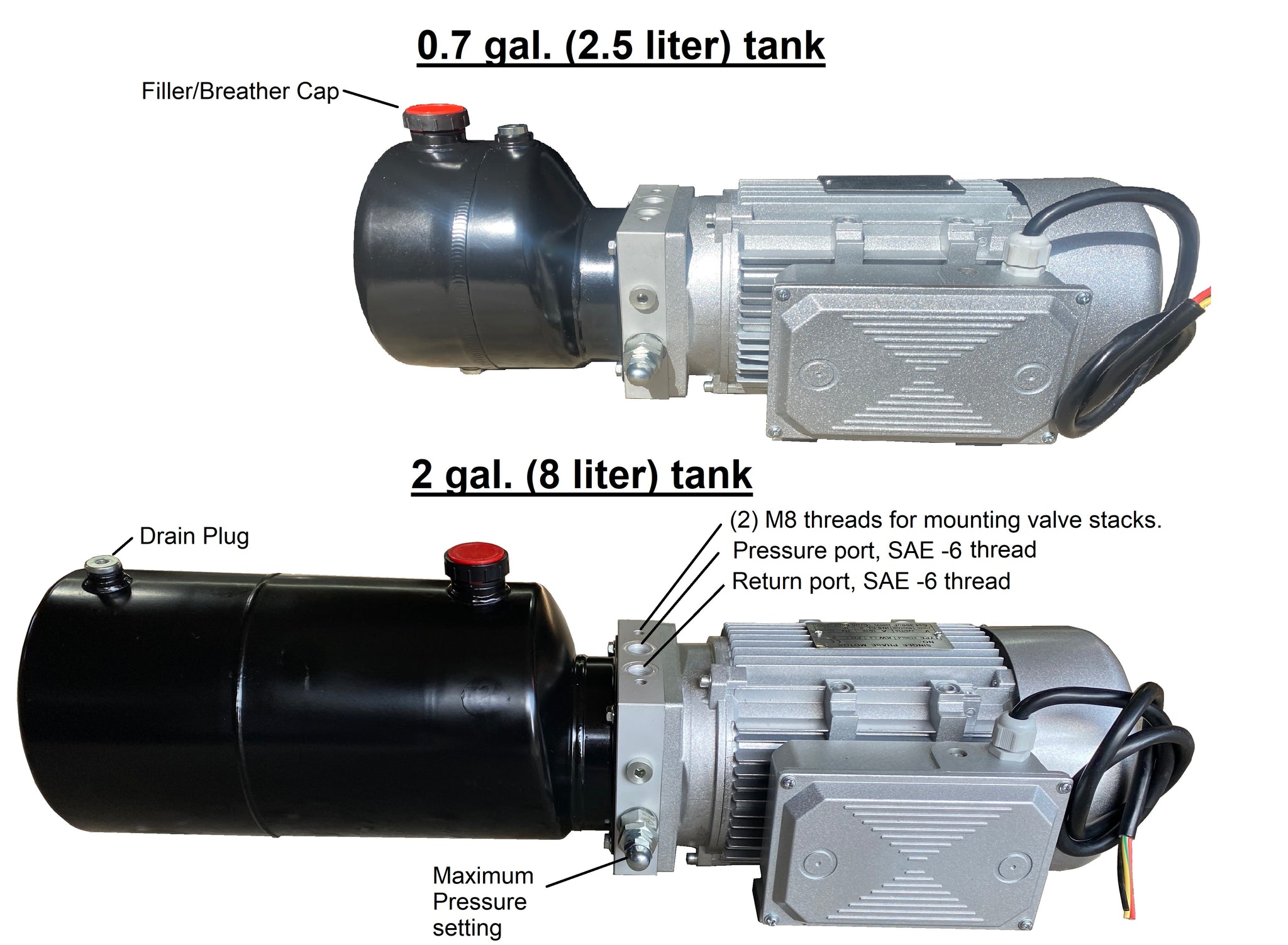

Units come with a 0.7 gallon (2.5 liter), 2 gallon (8 liter) or 3 gallon (12 liter) tank.

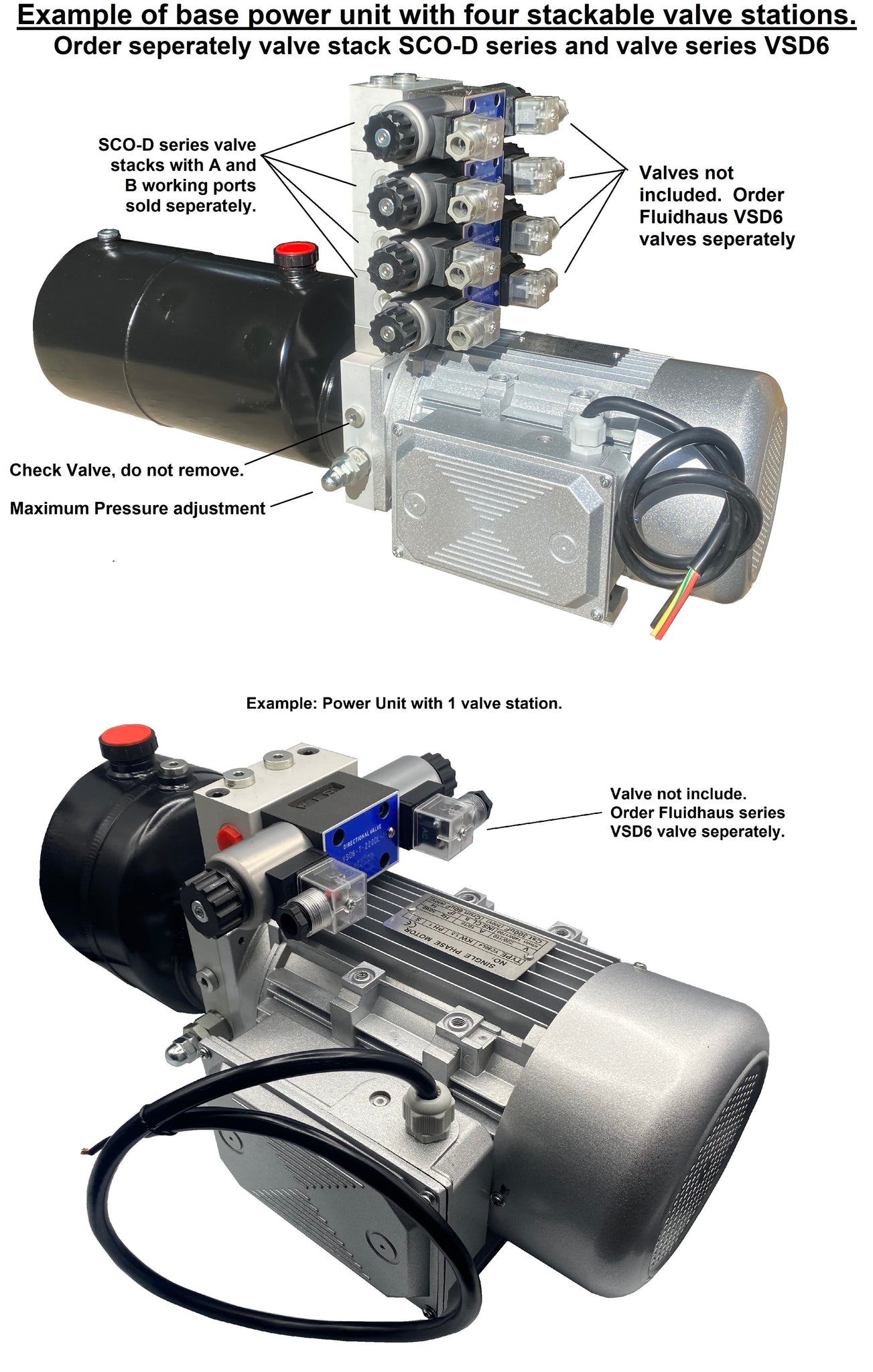

Up to four valve stacking blocks (Fluidhaus SCO-D part number) can be ordered with the power unit. The valve stacking blocks have a standard D03 (NG6) pattern to mount multiple valves directly to the power unit center block. The valves should be ordered separately for flexibility in the options required by searching Fluidhaus VSD6 series.

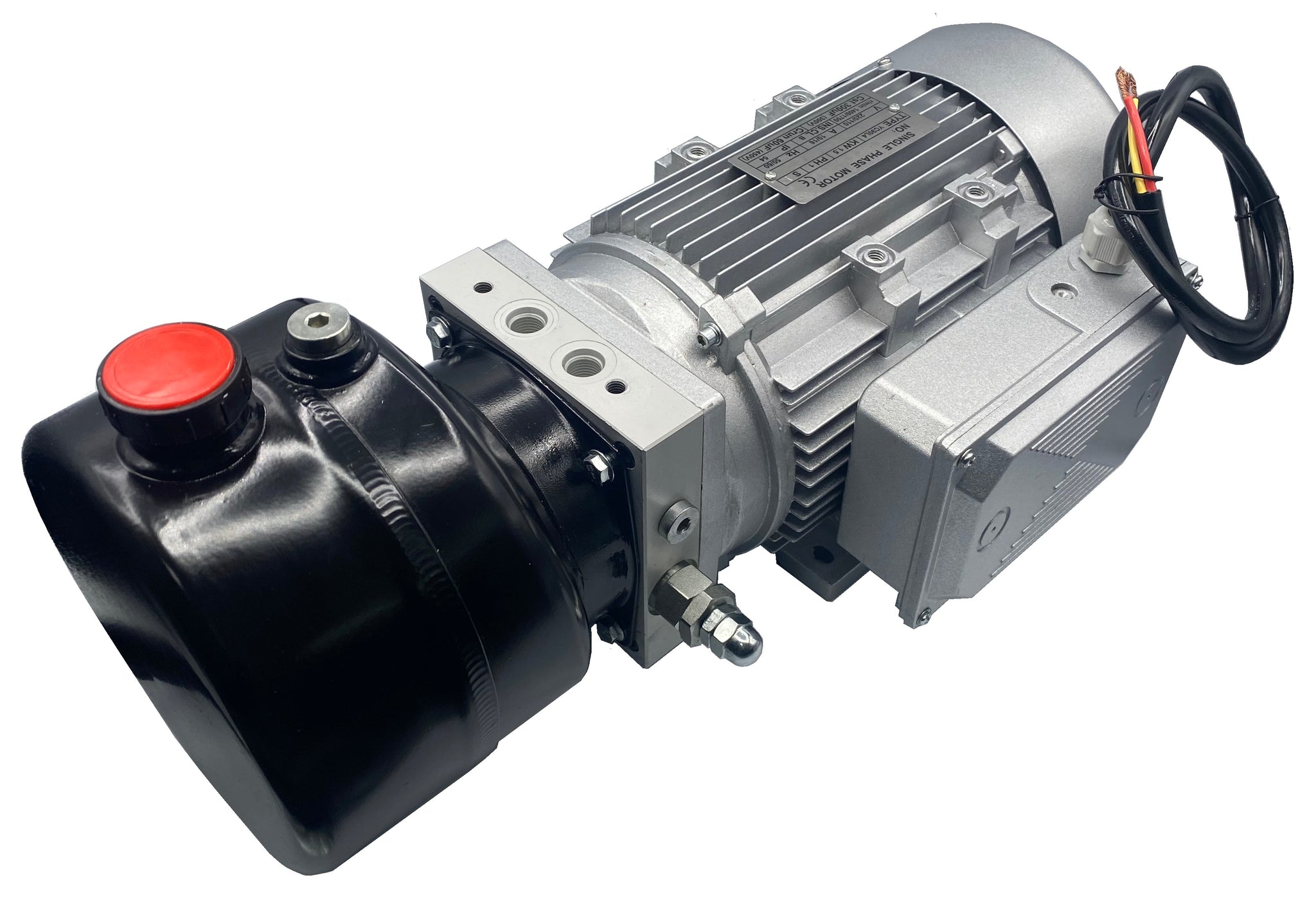

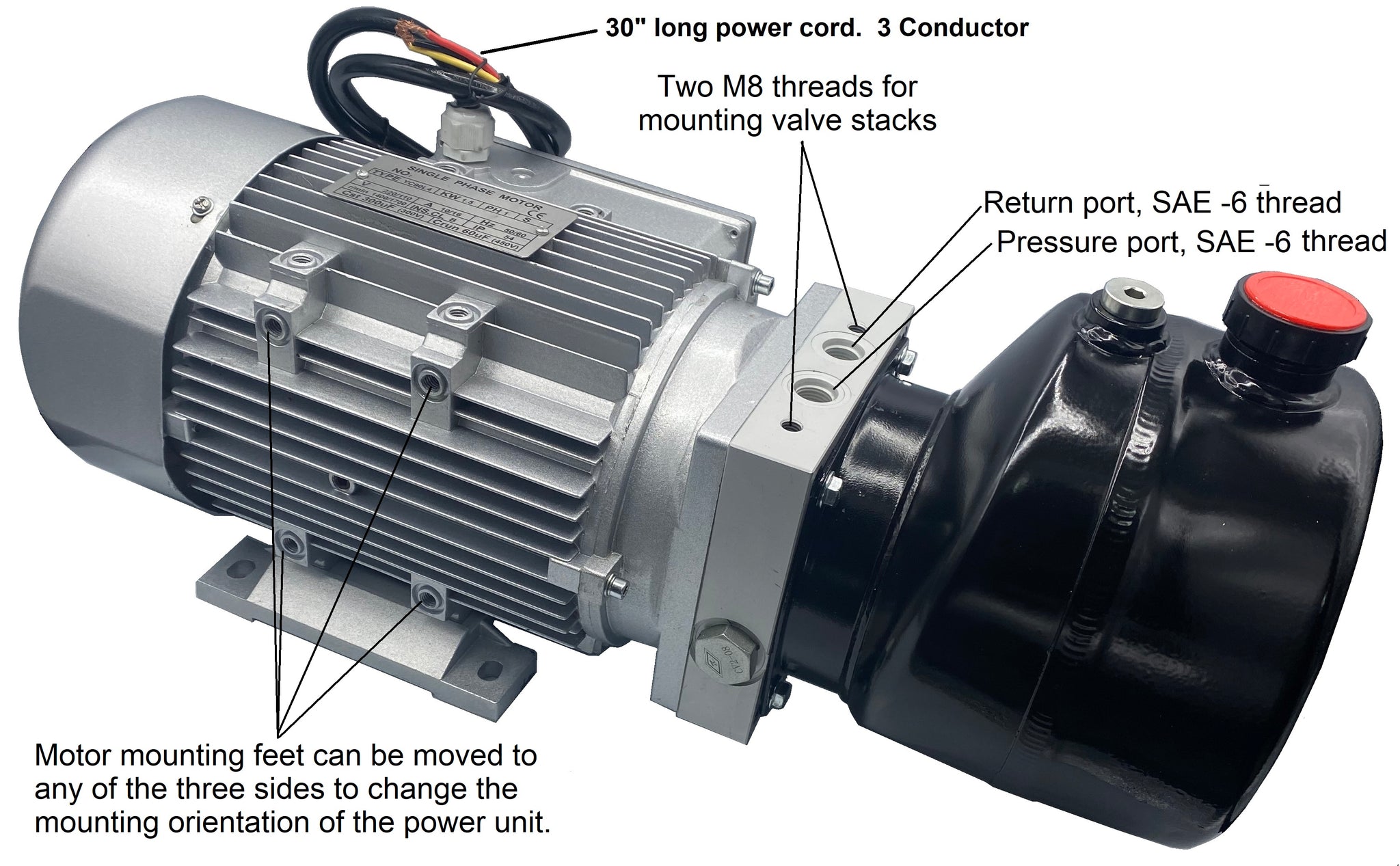

The base unit comes with 2hp motor, relieve valve and threaded pressure and tank ports.
Valves and Valve Stacking Blocks can be ordered separately at the following links:
