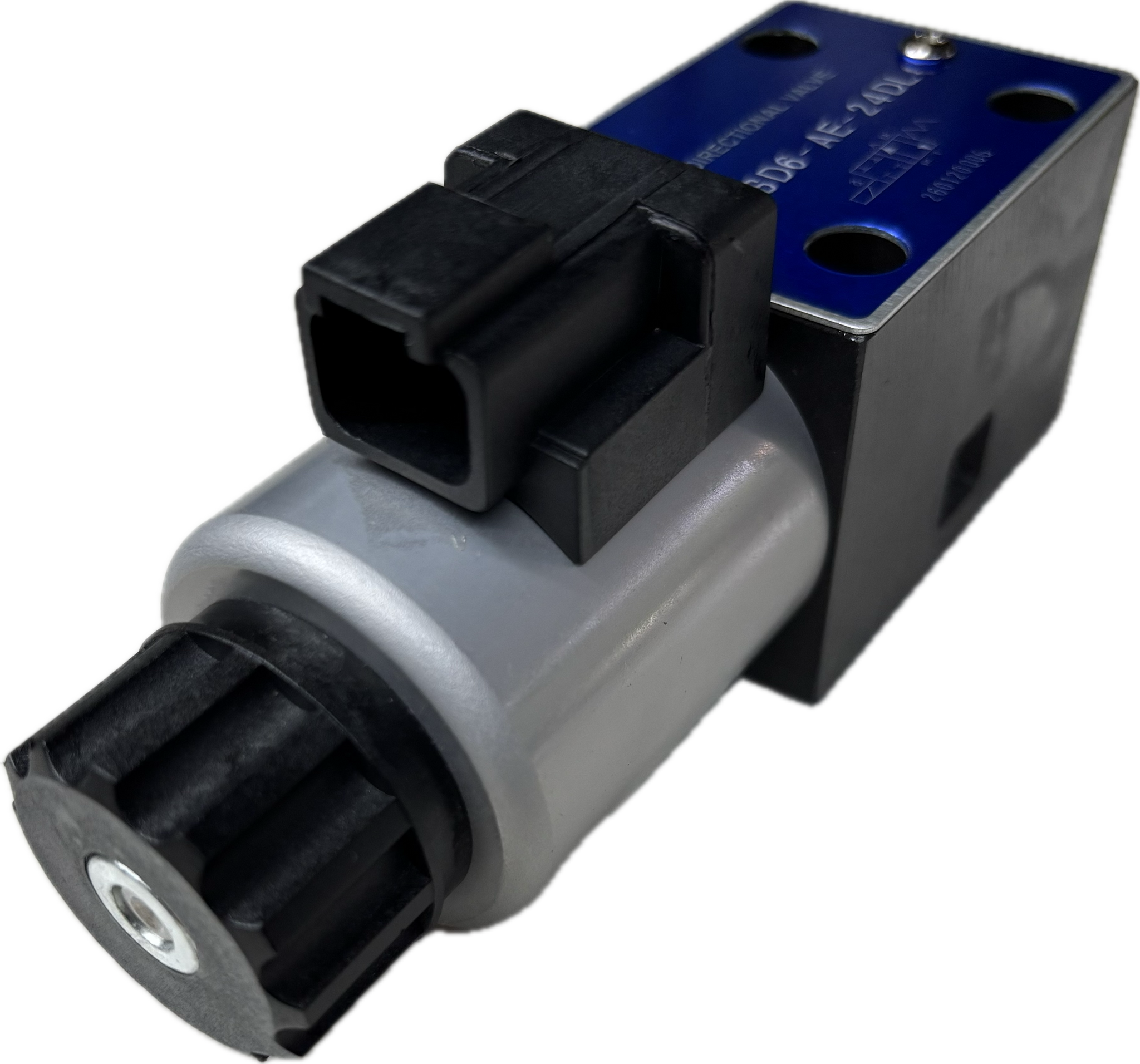

Hydraulic Directional Control Valve. Proven high quality robust valve design successfully designed into many high volume applications.
- D03 (NG6) Cetop mounting. Can be mounted to standard available subplates and bar manifolds.
- Maximum flow of 21 gpm for DC power and 15.8 gpm for AC (reference Solenoid Power limit chart)
- Maximum working pressure = 4560psi (315 Bar)
- 2-position, 4-way, energize to shift, Spring return
- Single solenoid operated
- Solenoid Power: DC= 30 watts, AC = 50VA (220VA inrush)
- Coil can be rotated to optimal connector position
- Uses DIN 46350 Form A electrical connection type
- Includes lighted DIN connector for each coil. LED illuminate’s clear connector housing when power is supplied to the connector/coil. IP65 water and dust rating.
- Use with mineral based hydraulic fluid.
- Four fastening screws included, M5x45mm long
- Weight = 3.2 lbs (1.45 kg)
- Solonoid Power: DC=30watts, AC=50VA holding and 220VA inrush
